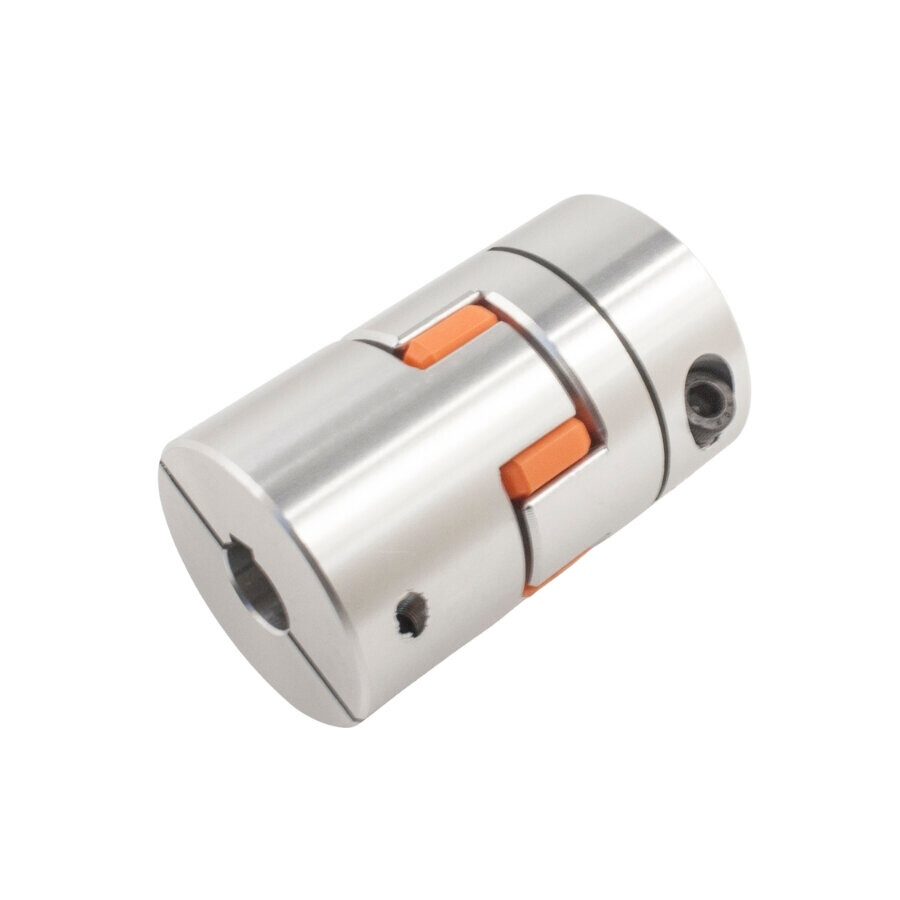

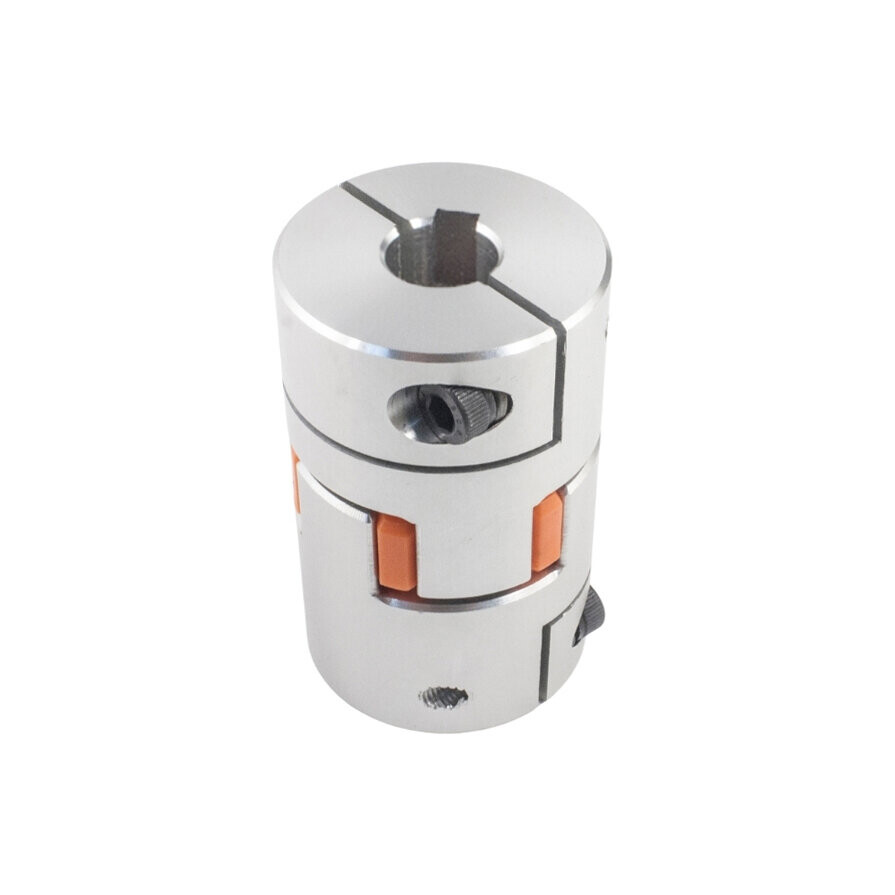

D40L66 Aluminum Flexible Coupling 14mm x 14mm

Product Description

The D40L66 Aluminum Flexible Coupling 14mm x 14mm is designed to provide a secure and flexible connection between motor shafts and mechanical transmission systems.

Because a plastic or rubber elastomer element is placed between the aluminum hubs, these couplings are also known as elastomer couplings. The elastomer element absorbs vibration and shock loads, ensuring smoother and more reliable power transmission.

With a 40 mm outer diameter and 66 mm length, this coupling is made from precisely machined aluminum, offering durability and long service life. The clamping design prevents shaft damage and allows easy installation and removal.

Flexible couplings also help compensate for angular and axial misalignment, improving system efficiency and reducing mechanical stress.

However, elastomer couplings should not be used in environments exposed to high temperatures or UV radiation, as these conditions may significantly reduce the lifespan of the elastomer material.

Applications

• Stepper motor systems

• Servo motor applications

• CNC machines

• 3D printer systems

• Mechanical power transmission systems

Technical Specifications

Mechanical Specifications

• Material: Aluminum

• Length: 66 mm

• Outer Diameter: 40 mm

• Inner Diameter 1: 14 mm

• Inner Diameter 2: 14 mm
