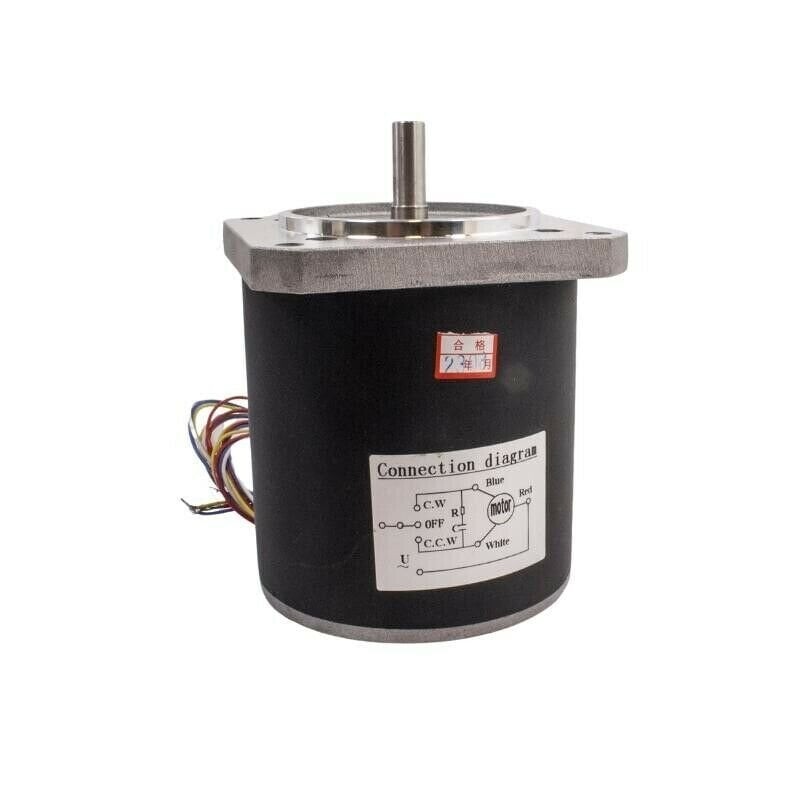

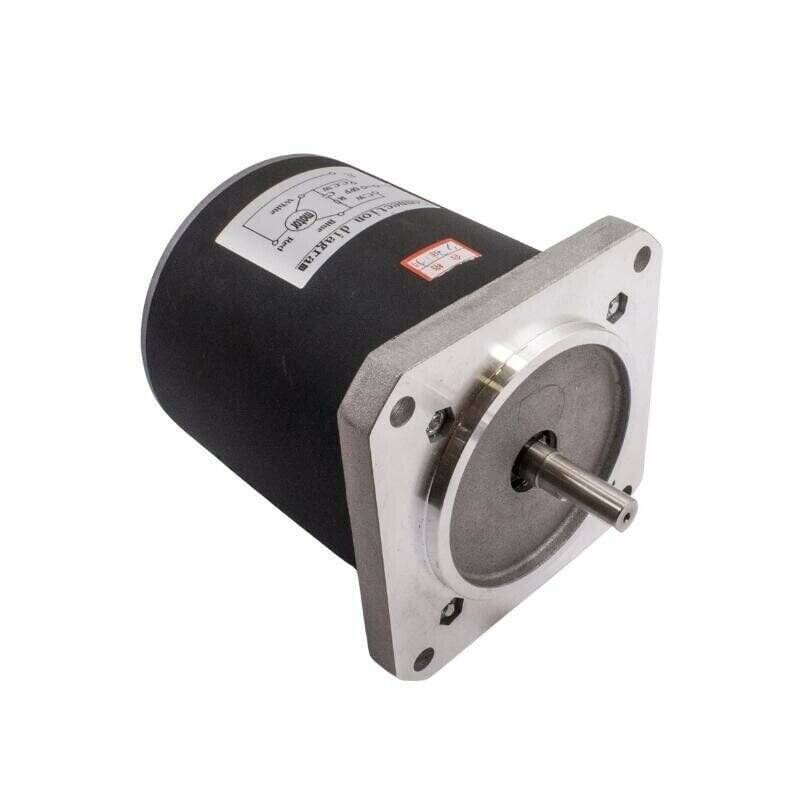

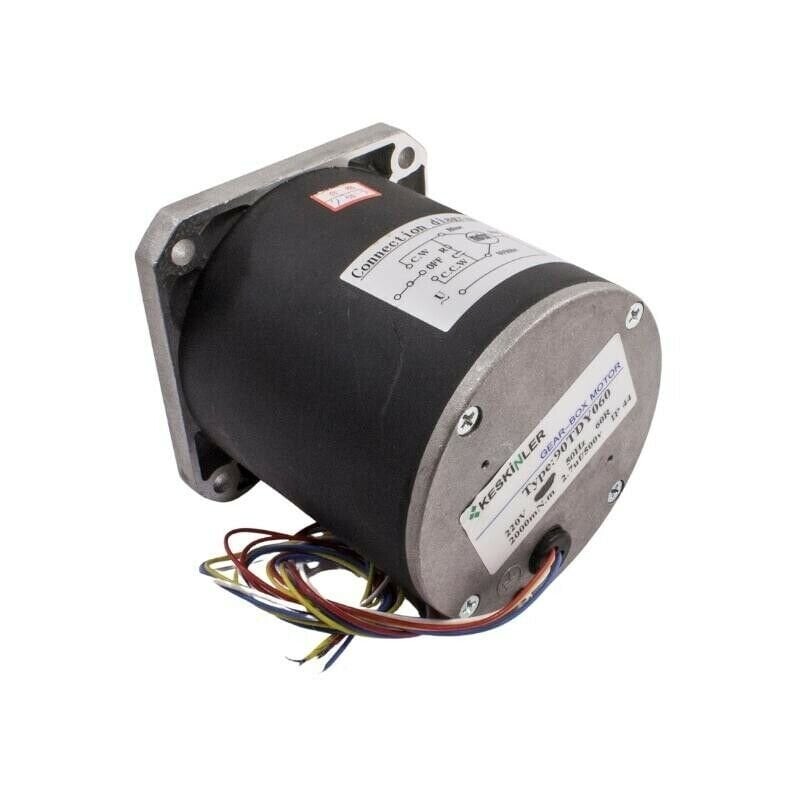

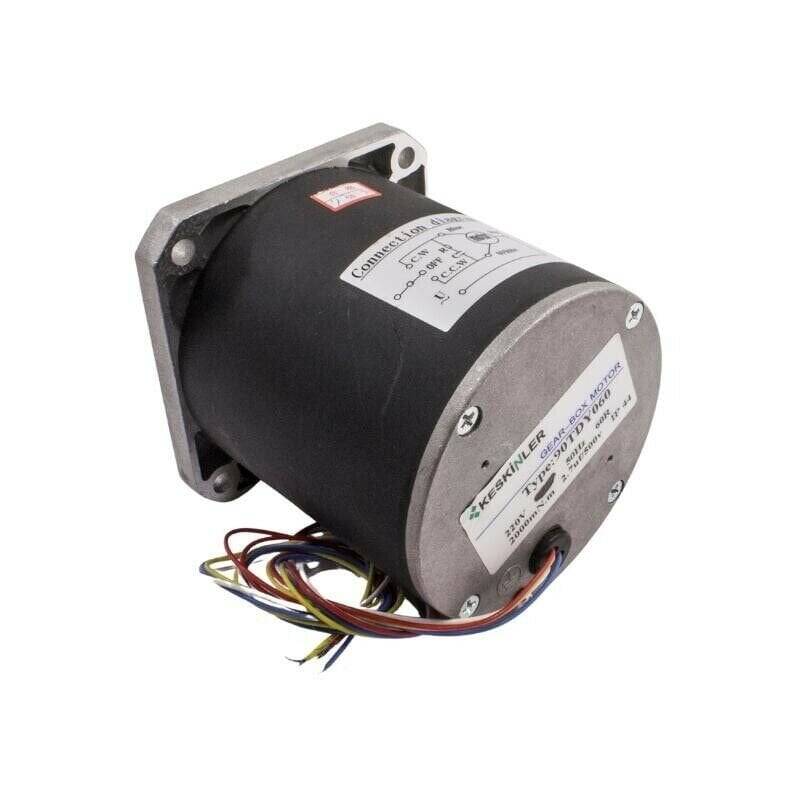

90TDY060 220V 60RPM AC Synchronous Motor
90TDY060 220V 60RPM AC Synchronous Motor, High torque and low noise. Permanent magnet 220V AC synchronous motor.
Technical Specifications
- Supply Voltage: 220V AC
- No-load Current: 0.35A
- Frequency: 50Hz
- RPM: 60
- Power: 70W
- Nominal Torque: 2400 mN.m
- Motor Diameter: 70 mm
- Shaft Diameter: 9 mm (D-Shaft)
- Shaft Length: 27 mm
- Frame Size: 95x94 mm
- Body Diameter: 90mm
- Length: 108mm
- Hole Distance: 75mm
- Hole Diameter: 6mm
- Weight: 2.8 kg
