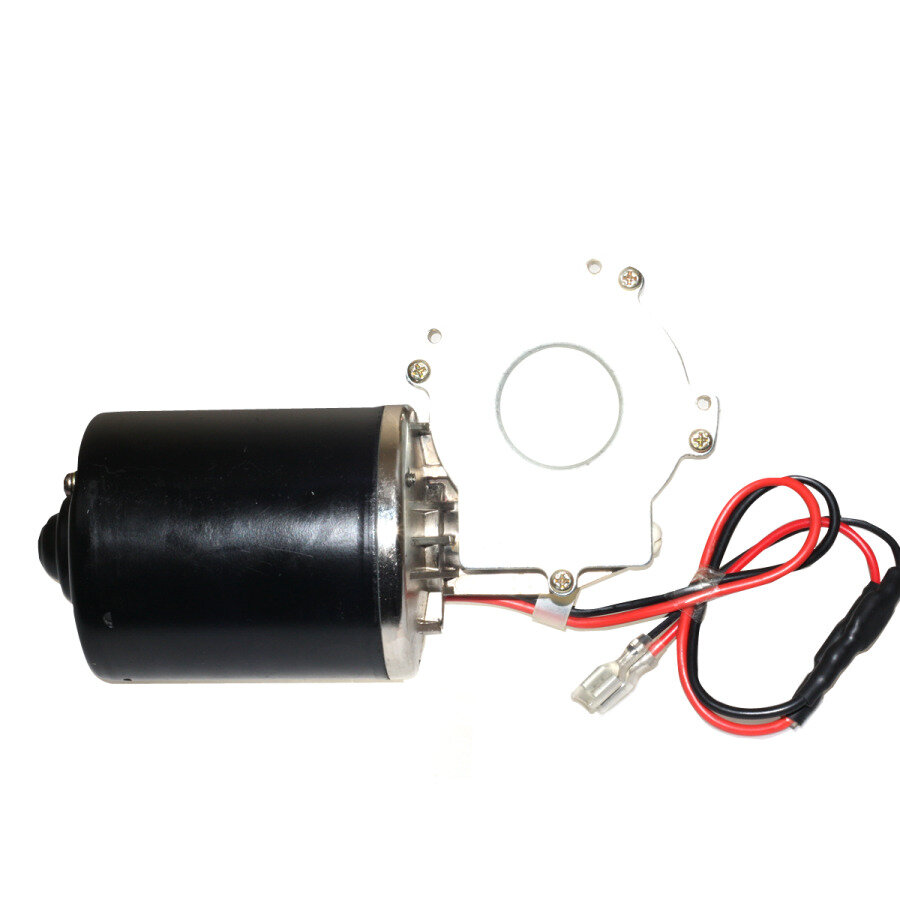

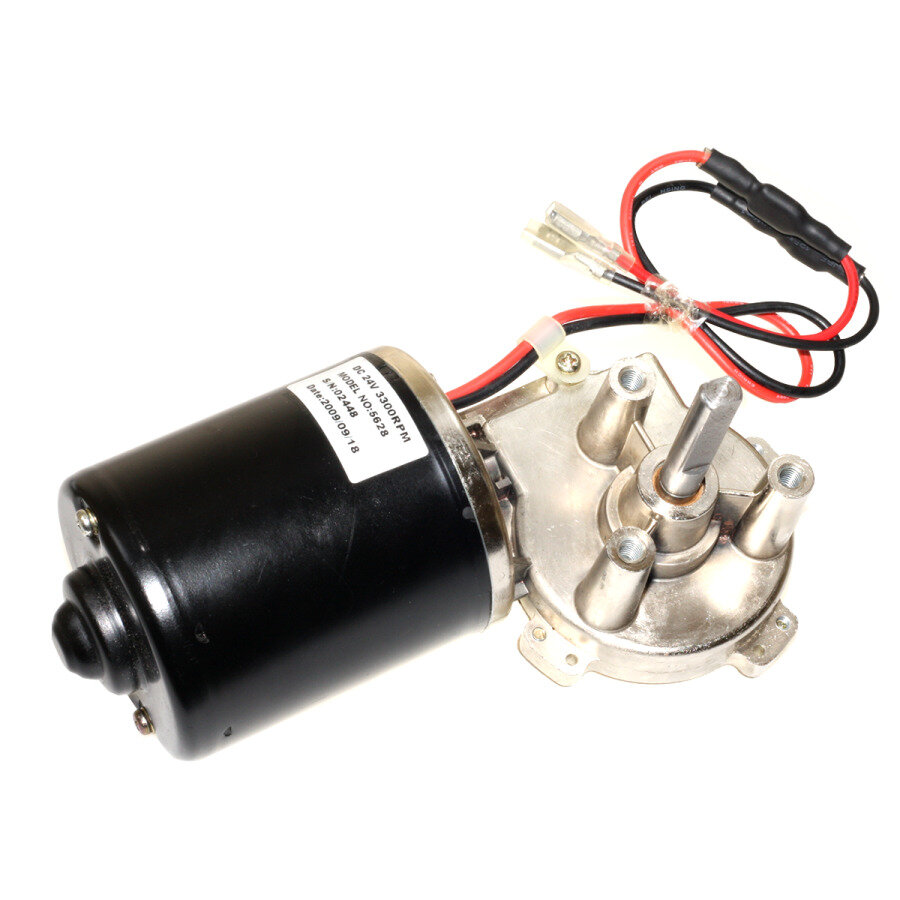

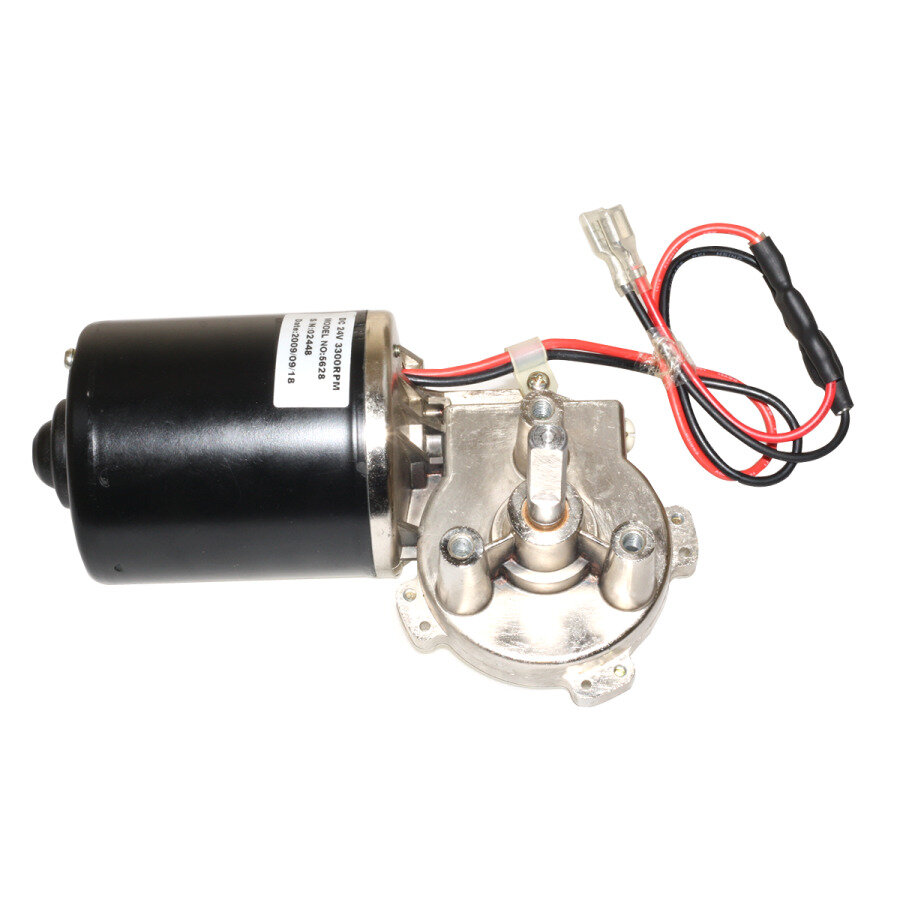

80W 60RPM High Torque Windshield Wiper Motor
The 24V 60 Rpm DC Wiper Motor - Right is used as a windshield wiper motor in various cars, as well as various off-road vehicles and other projects requiring high power. There are three 6mm diameter screw holes on the motor for fastening. The motor's reducer is designed to be on the right.
Technical Specifications;
| Power |
80W |
| Voltage |
24V |
| Torque |
10Nm |
| Stopping Torque |
43Nm |
| High Speed |
60RPM, 1.3A |
| Low Speed |
35RPM, 0.7A |
| Weight |
2.5KG |
- Shaft diameter: 11mm
- Shaft length: 47mm
- Hole spacing: 49mm
- Motor size: 188mm
- Motor diameter: 75mm
- Reducer diameter: 82mm
