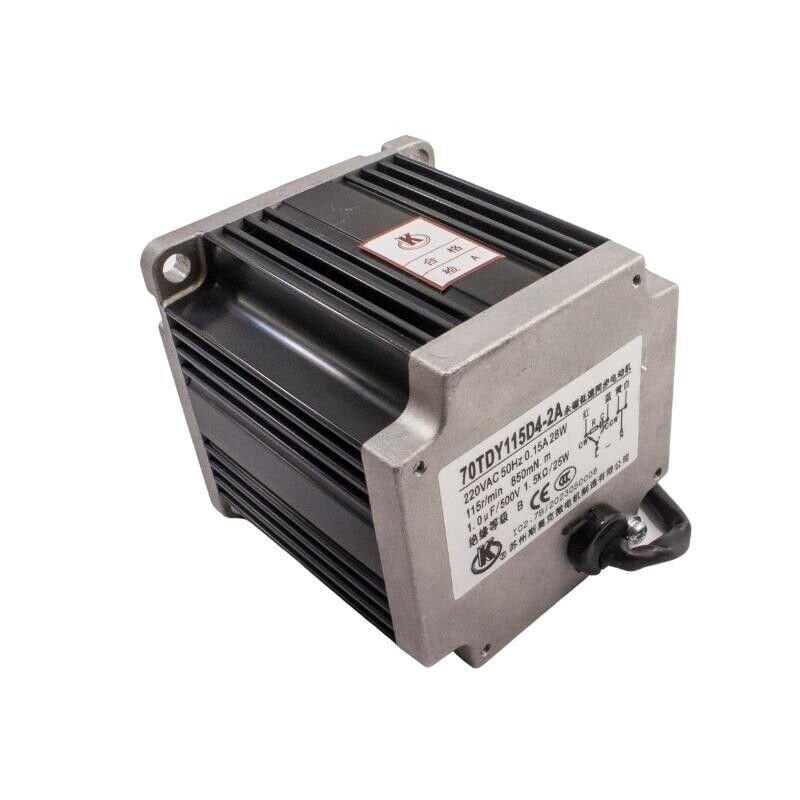

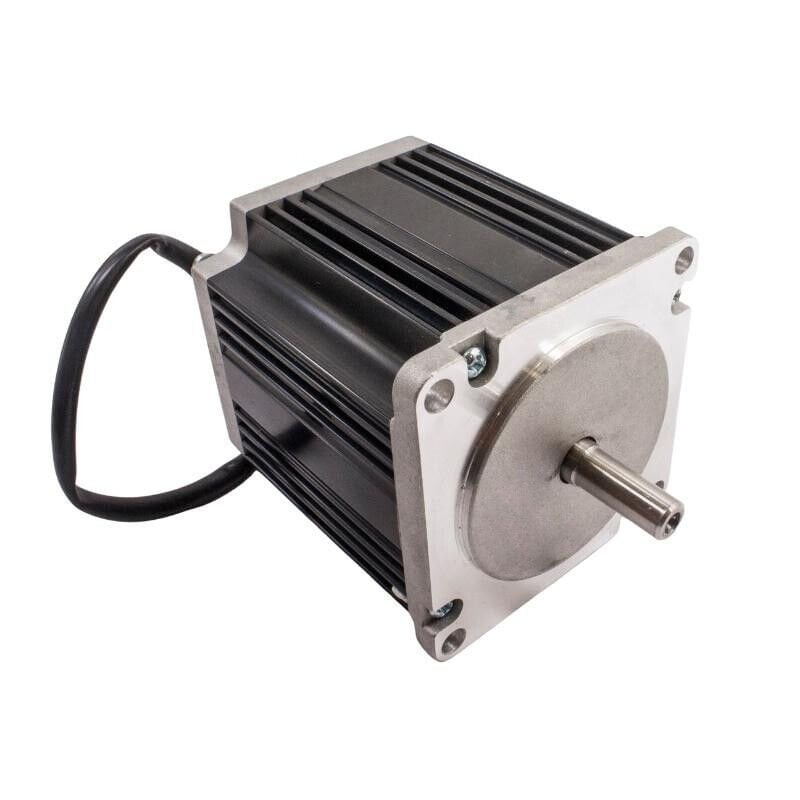

70mm 220V 115RPM AC Synchronous Motor - 70TDY115D4-2A
High torque and low noise. This 220V AC synchronous motor is generally used in textile machinery, electrical equipment, automation machinery, and printing and packaging machines.
Technical Specifications
- Operating voltage range: 220V
- Total length: 75 mm
- Frequency: 50Hz
- RPM: 115
- Power: 28W
- Motor diameter: 70 mm
- Shaft diameter: 8 mm (D-shaft)
- Shaft length: 20 mm
- Weight: 1.6 kg
