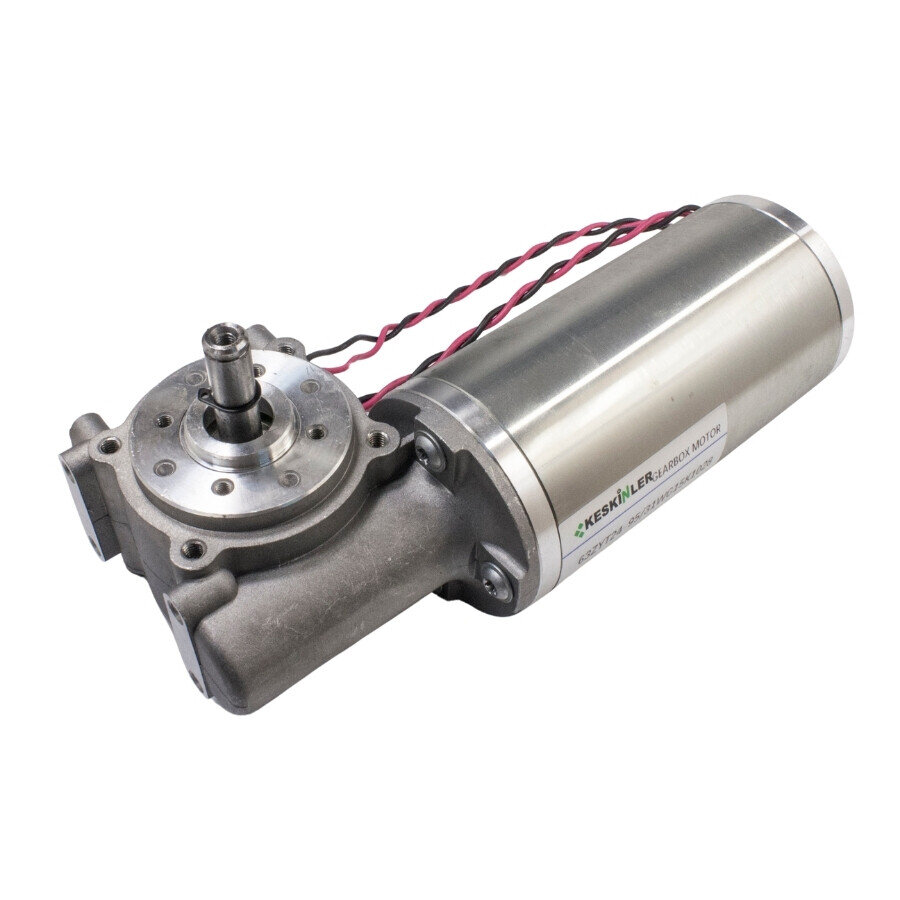

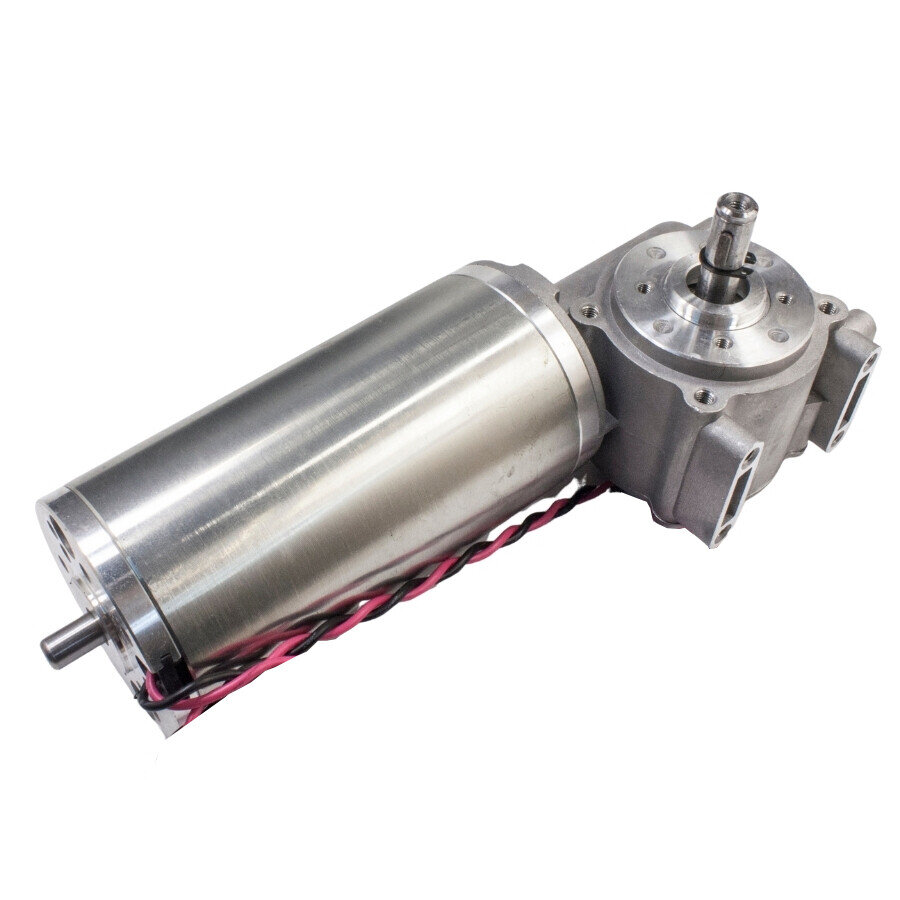

63ZYT24-95/31 24V 95W 225RPM Automatic Door Motor

PRODUCT DESCRIPTION

The 63ZYT24-95/31 24V 95W 225RPM Automatic Door Motor is a powerful DC motor designed for applications requiring high torque and controlled rotational speed. Operating at 24V DC, this motor delivers 225 RPM speed and 4.05 N.m torque, making it especially suitable for automatic door systems.

Although commonly referred to as an automatic door motor, this model can also be used in many general-purpose motion systems such as automation projects, mechanical opening-closing systems, and controlled rotation applications. It is an effective solution wherever both torque and stable speed are required together.

With a current draw of 6.5A, the motor is suitable for demanding and continuous-duty applications. Signal output lines also make it useful for certain control and feedback-based systems. Its robust structure makes it a reliable option for both industrial use and custom engineering projects.

KEY FEATURES

• 24V DC operating voltage
• 225 RPM rotational speed
• 4.05 N.m high torque output
• Suitable for automatic door systems
• Controlled rotation and stable performance
• 6.5A current consumption
• Signal output supported connection structure
• Suitable for industrial and general-purpose applications

TECHNICAL SPECIFICATIONS

• Operating Voltage: 24V DC
• Current: 6.5A
• Power: 95W
• Speed: 225 RPM
• Torque: 4.05 N.m

Pinout:

• Red: +5V
• Black: Ground (-)
• Green: Signal
• Yellow: Signal

APPLICATION AREAS

• Automatic door systems
• Gate and barrier mechanisms
• Industrial automation systems
• Controlled rotation applications
• Mechanical opening-closing systems
• Custom machinery and motion projects
