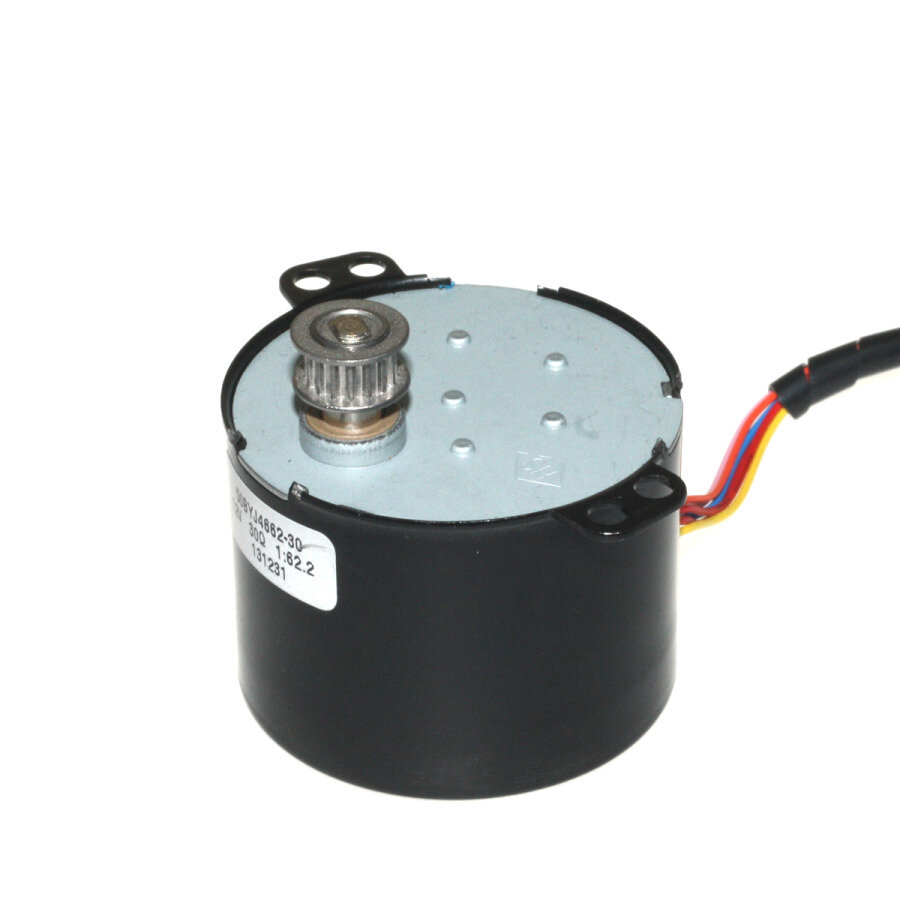

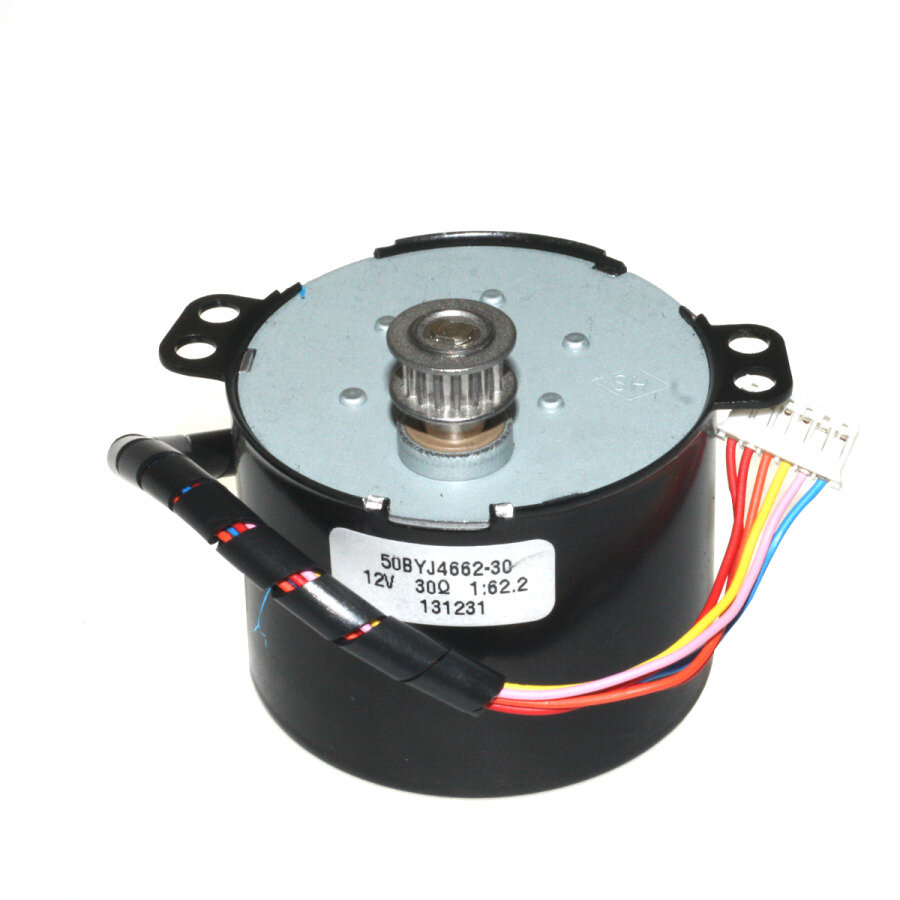

50BYJ4662-30 STEPPER MOTOR

Technical Details:

• 4 Phase
• Voltage 12 DC. V
• Resistance Per Phase 72 ±% 7 Ω /
• Step Angle: 7.5 / 60
• Reduction Ratio: 1/60
• Drawn Torque ≥ 450 mN. M
• Trigger Torque ≥ 850 mN. M
• No-load Tension Frequency ≥ 200 Hz
• No-load Transmission Frequency ≥ 400 Hz
• Insulation Resistance ≥ 50 MΩ (DC 500)
• Temperature Rise < 40 K
• Noise < 30 dB (A)
