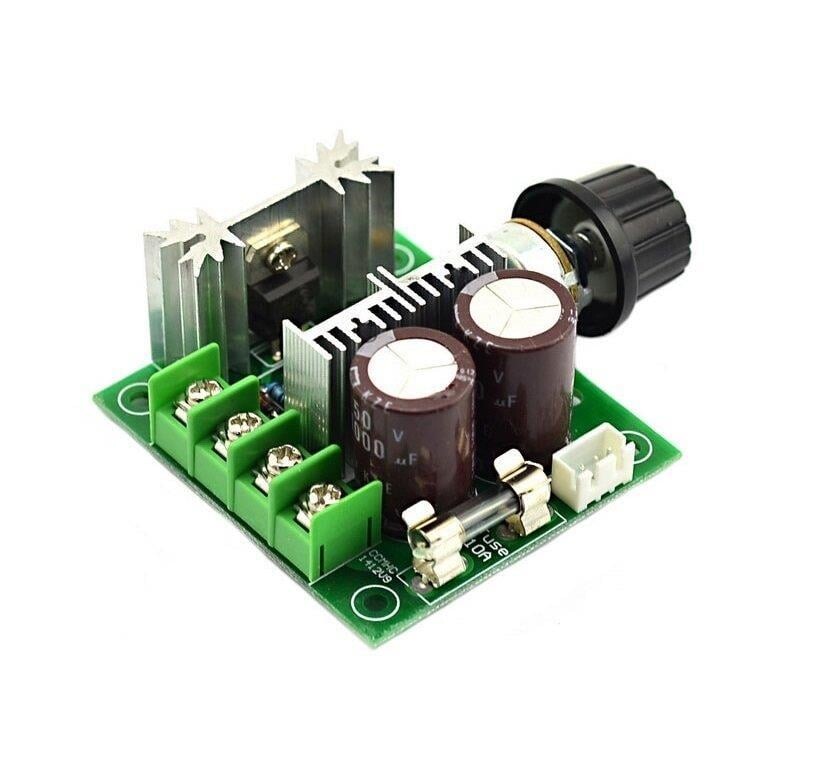

12-40V 10A PWM DC Motor Driver (400W)

Product Description

The 12-40V 10A PWM DC Motor Driver (400W) is designed to provide efficient and precise speed control for DC motors.

With an operating voltage range of 12-40V, the module is compatible with a wide variety of DC motor applications.

Using PWM (Pulse Width Modulation) technology, the controller allows efficient motor speed control while minimizing energy loss.

This driver supports DC motors drawing up to 10A and provides a maximum output power of 400W.

The integrated potentiometer allows easy adjustment of motor speed with a PWM modulation range from 10% to 100%.

Additionally, the module includes reverse polarity protection and overcurrent protection for safer operation.

Its compact design makes it ideal for robotics projects, industrial automation systems, electric vehicle applications, and DIY electronics projects.

Applications

• DC motor speed control systems

• Robotics projects

• Industrial automation

• Electric vehicle systems

• DIY electronics projects

Technical Specifications

Electrical Specifications

• Operating Voltage: 12-40V DC

• Maximum Current: 10A

• Maximum Power: 400W

• No-load Current: 0.02A

PWM Specifications

• PWM Range: 10% – 100%

• PWM Frequency: 13 KHz

Physical Specifications

• Dimensions: 73 × 60 × 27 mm
