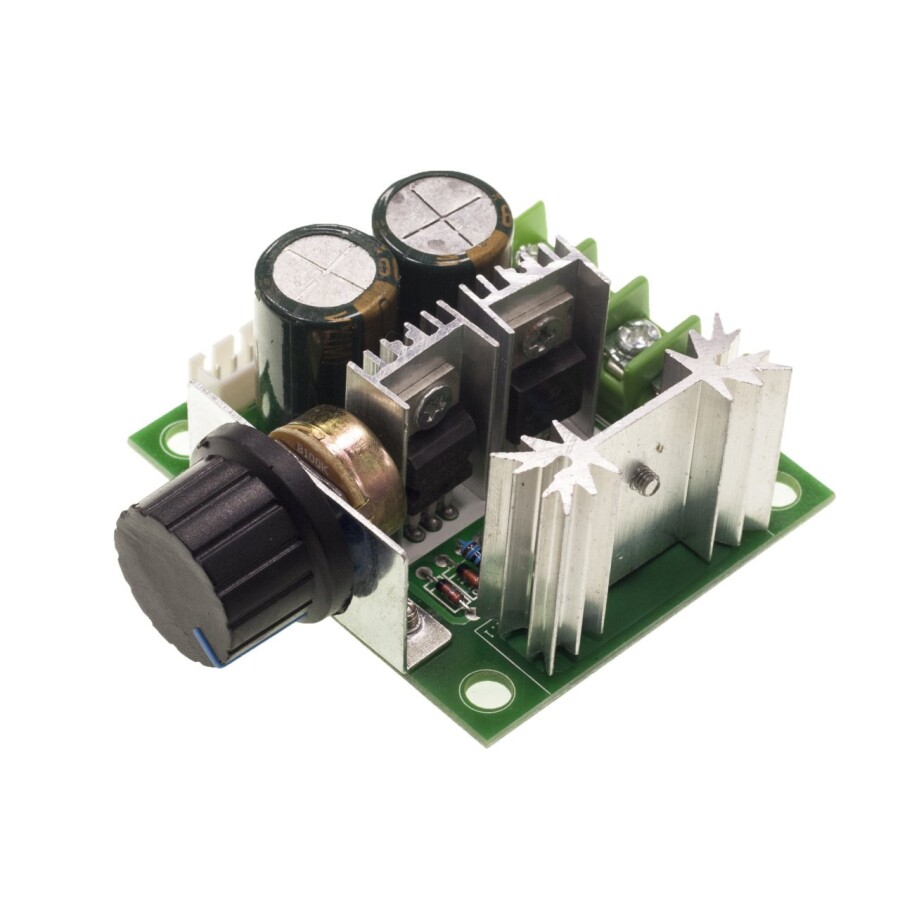

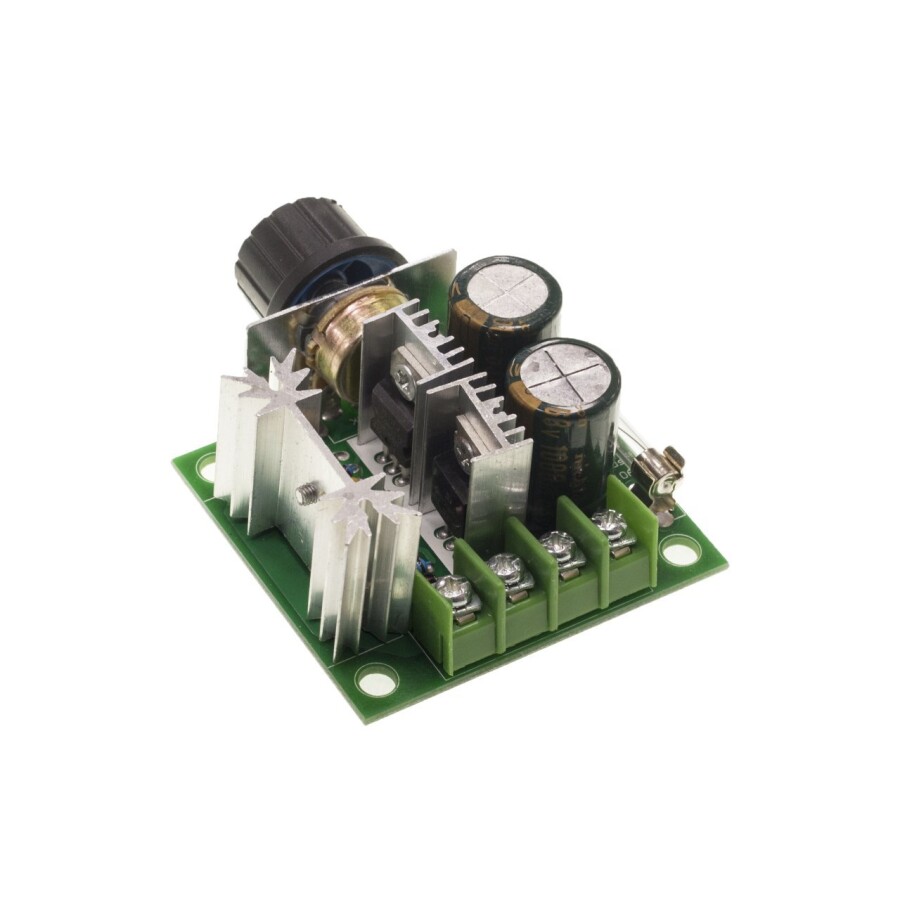

10A PWM DC Motor Driver

Product Description

The 10A PWM DC Motor Driver is designed to provide precise speed control for DC motors using Pulse Width Modulation (PWM) technology.

The module allows fully adjustable motor speed from 10% to 100%, ensuring efficient control while minimizing power loss.

It can deliver up to 10A peak current and provides continuous current output of 8A, making it suitable for a wide range of DC motor and DC load applications.

Motor speed can be easily adjusted using the integrated potentiometer on the control board.

The circuit includes reverse polarity protection, high voltage protection, and a built-in 10A fuse for safer operation.

Large heat sinks are used on the board to improve cooling efficiency and ensure stable performance during operation.

Thanks to its high efficiency and ease of use, this motor driver is widely used in robotics, industrial automation systems, electric vehicle projects, and DIY electronics applications.

Applications

• DC motor speed control systems

• Robotics projects

• Industrial automation systems

• Electric vehicle applications

• DIY electronics projects

Technical Specifications

Electrical Specifications

• Operating Voltage: 12-40V DC

• Maximum Current: 10A

• Continuous Current: 8A

• Maximum Power: 0.01 – 400W

• No-load Current: 0.02A

PWM Specifications

• PWM Range: 10% – 100%

• PWM Frequency: 13 KHz

Physical Specifications

• Dimensions: 73 × 60 × 27 mm
