YN90-90 220V 90W 90RPM Flanşlı AC Motor
Kategori
Stok Kodu
ACLNX1.046
YN90-90 220V 90W 90RPM Flange AC Motor
YN90-90 is a type of motor with a 90mm reducer diameter and 90 watt power, which is frequently preferred in industrial applications and machine manufacturing. Technical drawing, speed and torque information of the product are given below. You can contact us for other speed options and bulk purchases.
Features:
- Supply Voltage: 220/230V AC
- Frequency: 50 Hz
- Power: 90W
- Current: 1.3A
- Torque: 68.6 kgf.cm
- Reducer Ratio: 1:15 90JB15G15
- Speed: 90 RPM

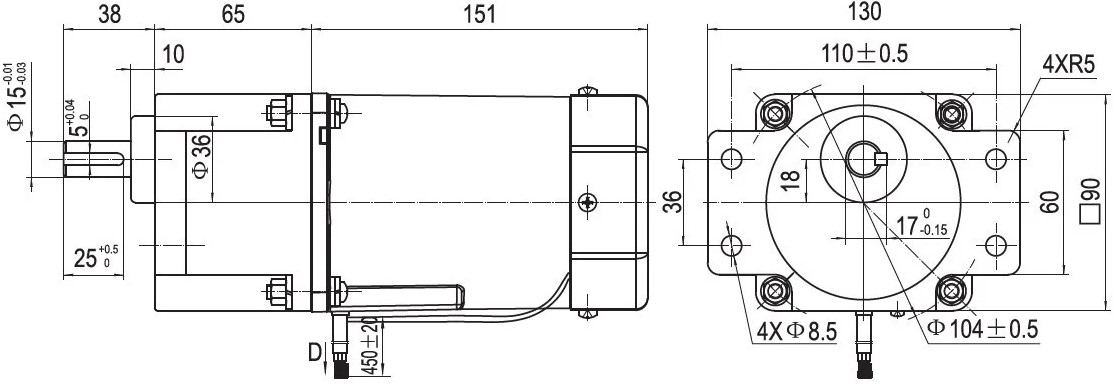

Technical Drawing:
