YN90-220-60 220V 52RPM Frenli AC Motor - 90JB25GN
Category
Stock Code
ACLNX1.060

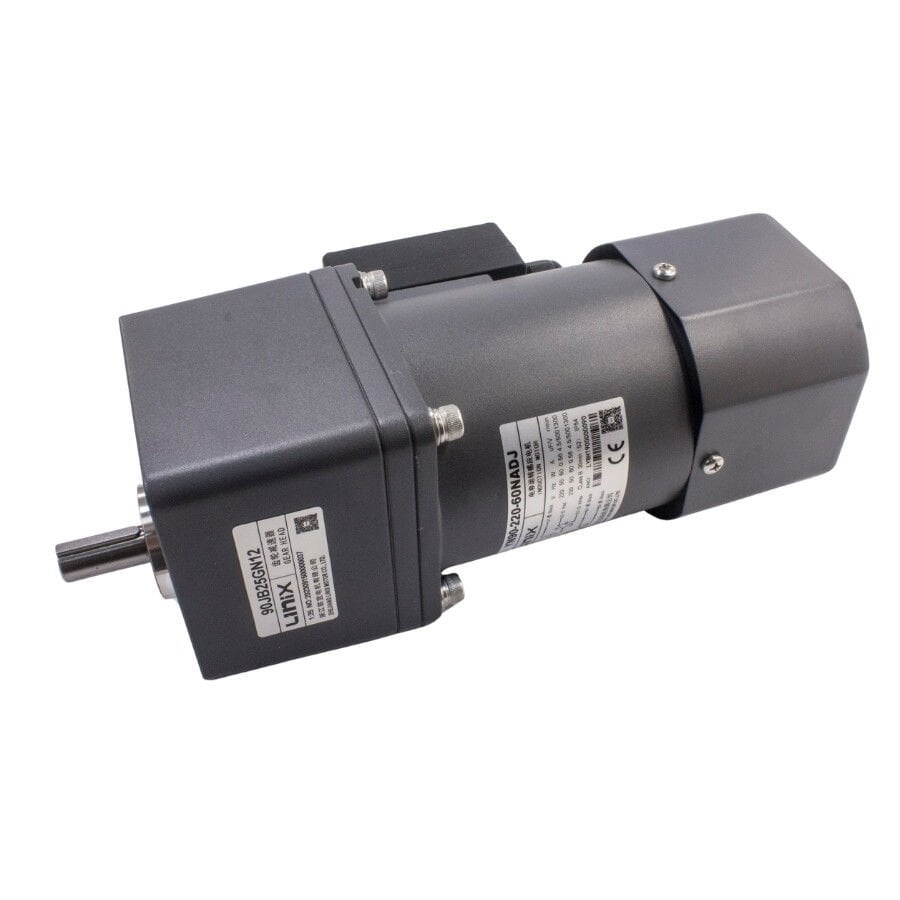

YN90-220-60 220V 52RPM Brake AC Motor - 90JB25GN
YN90-220 is a type of motor with a 90mm reducer diameter and 60 watt power, which is frequently preferred in industrial applications and machine manufacturing. Technical drawing, speed and torque information of the product are given below. You can contact us for other speed options and bulk purchases.

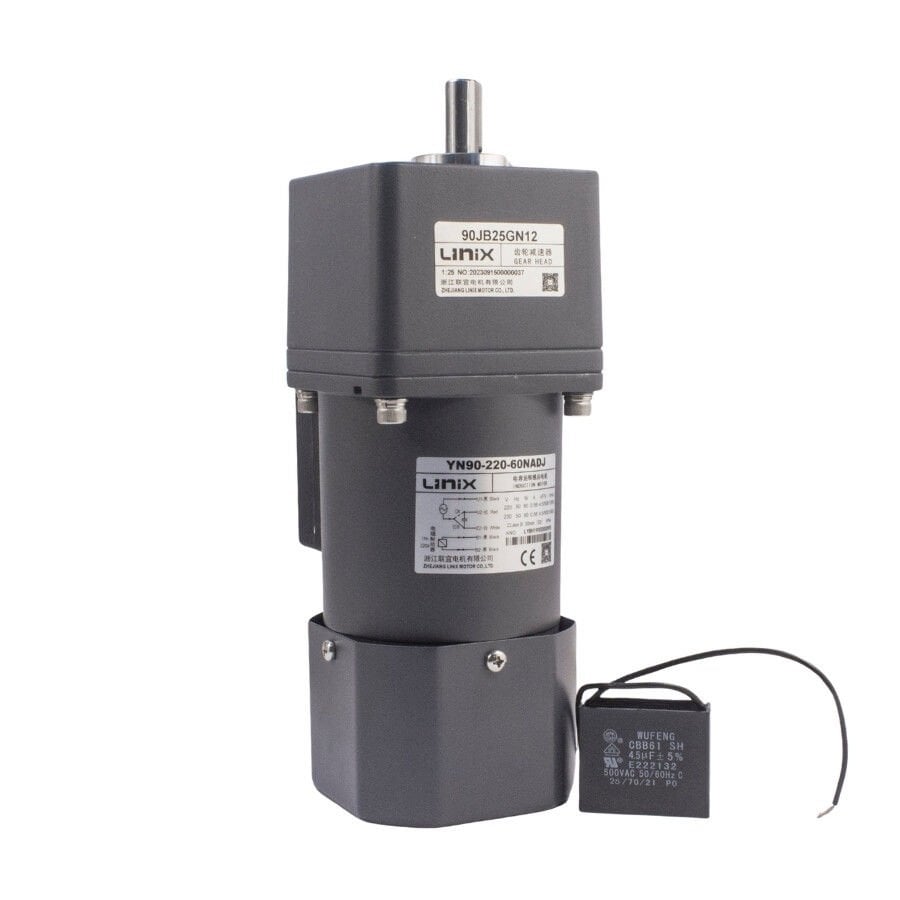

A CBB61 4.5uF 450VAC capacitor is sent with the product.
Features
- Supply Voltage: 220V AC
- Current: 0.56A
- Lower Motor Speed: 1300 RPM
- Rotation Speed: 52 RPM
- Torque: 16.1 Nm
- Shaft Diameter: 12.7mm
- Shaft Length: 25mm
- Reducer Diameter: 90mm
- Motor Length: 160mm
