YN80-220-25 220V 13RPM Frenli AC Motor - 80JB100GN
Category
Stock Code
ACLNX1.026

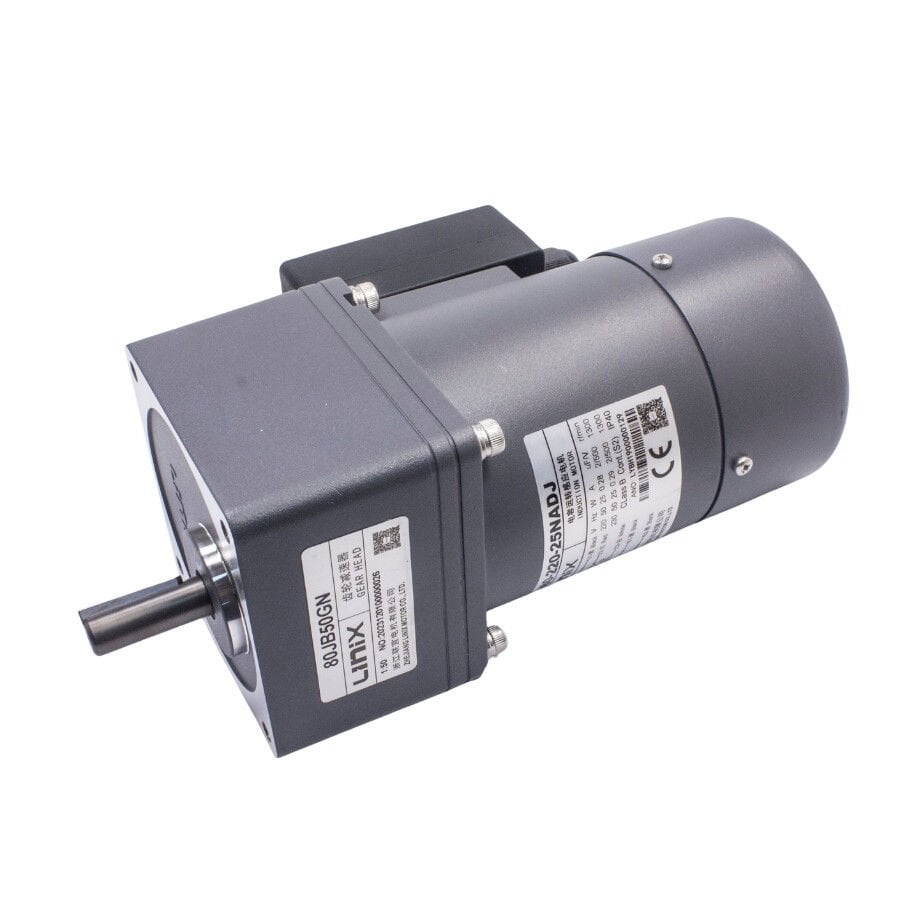

YN80-220-25 220V 13RPM Brake AC Motor - 80JB100GN
YN80-220 is a motor type with a 80mm reducer diameter and 25 watt power, frequently preferred in industrial applications and machine manufacturing. Technical drawing, speed and torque information of the product are given below. You can contact us for other speed options and bulk purchases.

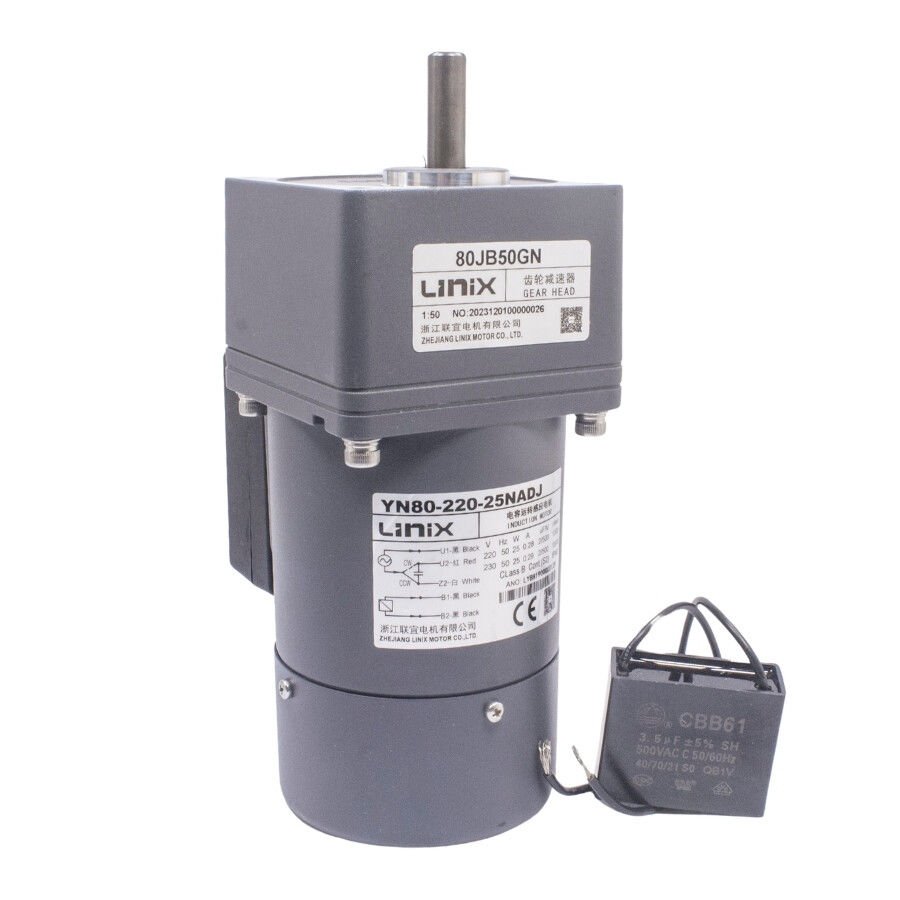

A CBB61 2uF 450VAC capacitor is sent with the product.
Features
- Supply Voltage: 220V AC
- Current: 0.28A
- Lower Motor Speed: 1300 RPM
- Rotation Speed: 13 RPM
- Torque: 10 N.m
- Shaft Diameter: 10.7mm
- Shaft Length: 25mm
- Reducer Diameter: 80mm
- Motor Length: 122mm
