KLSG17 24V 30RPM DC Motor
KLSG17 is a powerful motor that you can use in your special projects thanks to the long shaft with holes on it.
Features:
- Voltage: 24VDC
- Speed: 30 RPM
- Idle Current: <1A Max.
- Load Current: 2A
- Hi-Pot Test：550vac/0.5mA/1S;
- Insulation class: B
- Screw loosening force: 32kg.cm
- Noise: 50dB max (test distance 30cm)
- Performance Specification (2-pole magnetic ring):

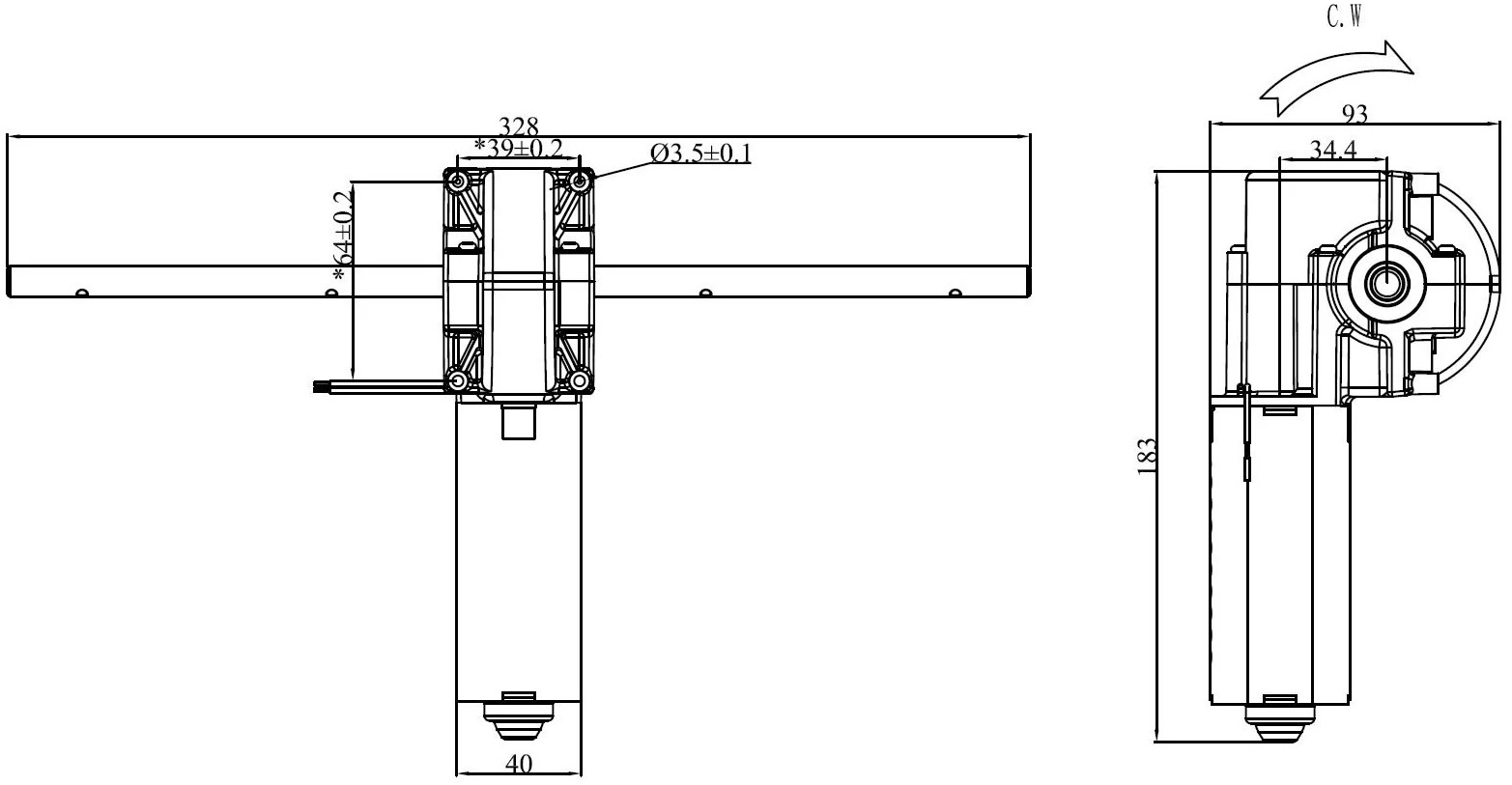

Technical Drawing
