JK86HS78 NEMA34 Step Motor
Kategori
Stok Kodu
NEMA34.002
JK86HS78 NEMA34 Stepper Motor
JK86HS78 NEMA34 Stepper Motor is a type of motor that you can use in various machines you manufacture, especially in projects that require precise positioning.
Features:
- Number of Phases: 4
- Angle Value: 1.8 degrees
- Voltage: 2.4V
- Peak Current Value: 4 A
- Phase Resistance: 0.6 Ohm
- Torque: 2.5 Kg.cm
- Weight: 2.3 kg

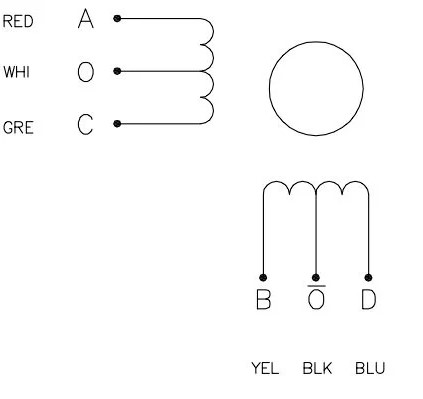

Cable Colours:
- Red: A
- White: O
- Green: C
- Yellow: B
- Black: O-
- Blue: D
Technical Drawing:
